SQ-50F Fiber Laser Coding System

Squid Ink’s SQ-50F fiber laser coding system is designed for high-speed automotive, electronics, medical, aerospace, and other primary coding applications. The SQ-50F laser can permanently mark on to ceramics, plastics, matte metals, rubber, composite material, and more.

Squid Ink’s SQ-10 laser coding system is designed for high-speed food and beverage, pharmaceutical, cosmetic, and other primary coding applications. Squid Ink CO2 lasers can permanently mark onto paper, cardboard, plastic, and more.

Benefits

BENEFITS OF THE SQ-50F

Fiber laser coding system
50W model
Static or continuous marking modes
No inks or solvents – environmentally friendly and cost-effective

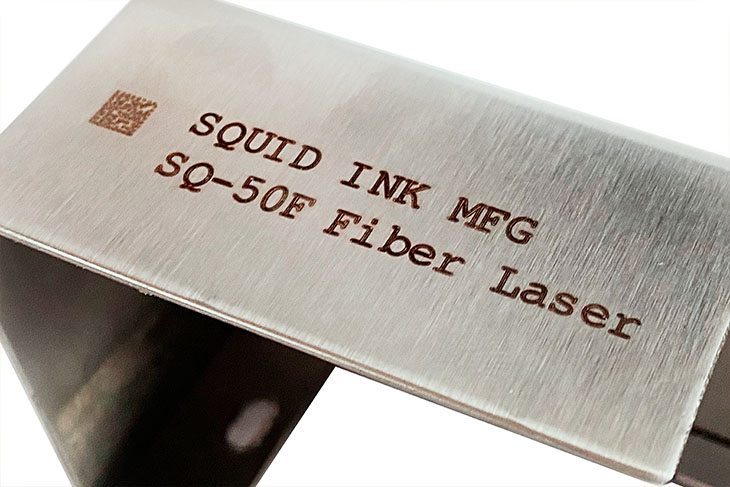

Marks on ceramics, plastics, matte metals, rubber, composite material, and more

Systems

SYSTEM SPECIFICATIONS

Print Technology – Fiber laser coding system
Laser Wavelength – 1.064μm
Laser Galvanometer – High-precision 2D high-speed scanning galvanometers
Cooling Method – Atmospheric air-cooled
Dust Way – Sealed
Power Consumption – 800W
Marking Focal Length – 100mm – 305mm
Position Accuracy– 0.01mm
Minimum Line Width – 0.1mm
Marking Area – 100mm X 100mm – 205mm X 205mm (depending on focal length)
Assembly Line Speed Support – <120m/min
Marking Speed – 800 – 1000 characters/second
Character Size – Adjustable in marking range
Marking Line Number – Code Rotation – 0 to 360°
Software Features – Counter, lot counter, shift code, time and date, expiration date
Operating Languages – English and Chinese

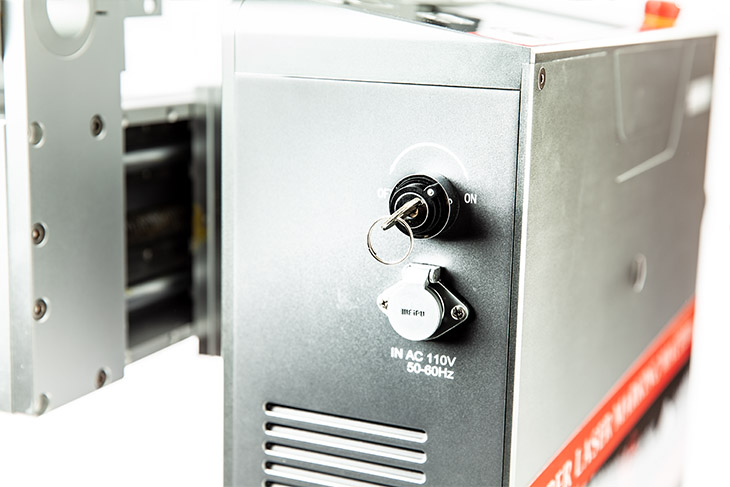

Cabinet Construction – Heavy duty cast aluminum
Cabinet Dimensions – 20” (51cm) L x 4” (10cm) W x 4.7” (12cm) H
Power Controller Dimension – 18” (46cm) L x 18” (46cm) W x 6” (15cm)
Electrical Requirements – 90 – 220VAC, 50/60Hz
Operating Environment – 32°F – 113°F (0°C – 45°C)
Humidity Range – 10 – 90% relative humidity, non-condensing
Packaged Weight – 54 lbs. (24kg)

Optional Accessories

OPTIONAL ACCESSORIES

Print Trigger – Optical, fiber optic, ultrasonic, laser, metal proximity, capacitive proximity
Encoder – For operation with variable speed conveyors

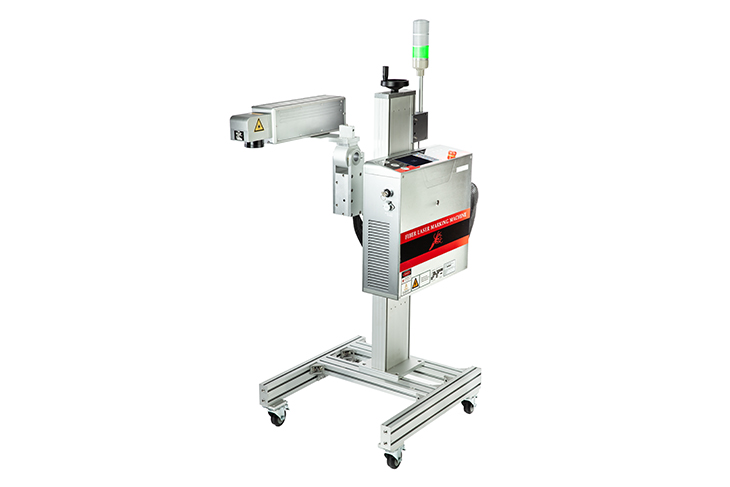

Mobile Stands – Heavy-duty stand with ability to rotate laser controller in any direction and easily raise and lower marking machine by a single operator; includes casters for easy transportation within the plant

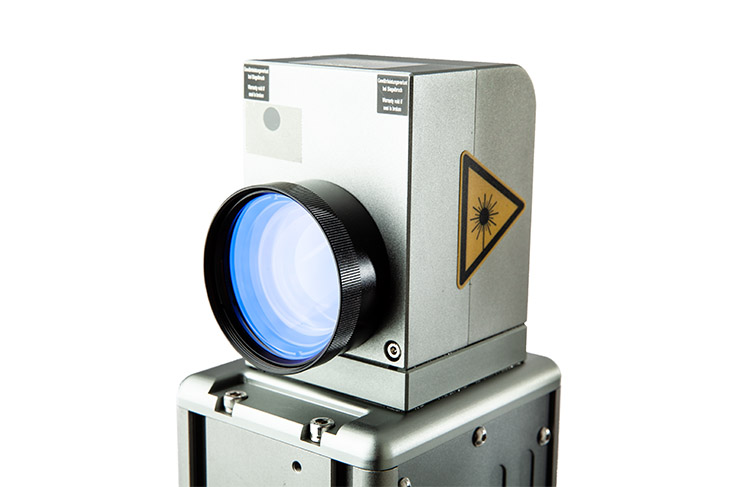

90 Degree Head Pivot Extension – Mirror assembly that allows marking head to point lens in line with unit axis

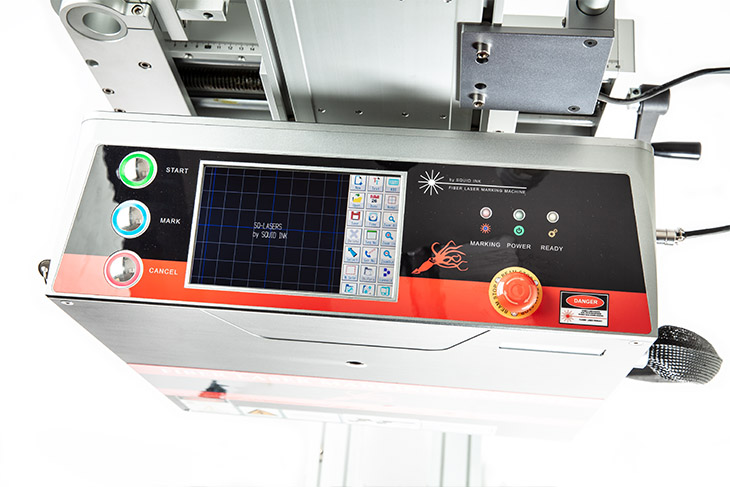

Hand Held 10” Touchscreen Controller – Allows complete control of the system when access is limited due to mounting requirements
Laser Fume Extraction Systems – SQ-LFX or SQ-LFX PVC for the proper extraction of laser application fumes
Installation and Training – On-site installation and training available
