While good things sometimes come in small packages, more will fit into larger ones! In the industrial packaging industry, efficient and reliable marking and coding solutions for large packages are crucial to ensuring a seamless supply chain. At Dartronics, Inc., we stand by the selection of Squid Ink’s CoPilot® Max Turbo and CoPilot® Gemini as the top choices for our customers. These high-resolution large-character inkjet printing systems offer superior performance, enabling our clients to meet their packaging needs with precision and speed.

BENEFITS OF “GOING BIG” WITH SQUID INK’S LARGE CHARACTER PRINTERS:

• • Affordable Product Coding
  • Bigger Print, Better Print
  • Budget Friendly Label Replacement
  • Designed For Your Application
  • Increased Performance
  • Large Format Printing Versatility
  • Production Floor Functionality
  • The Performance Your Operation Needs

More about Squid Ink’s Large Character Printers:

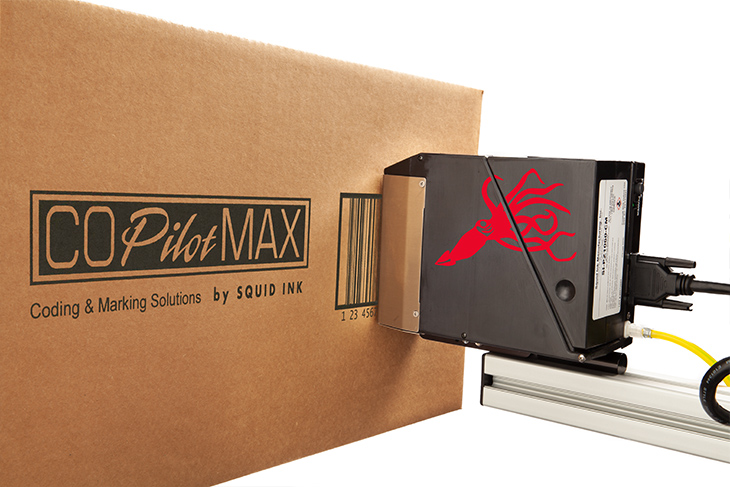

CoPilot® Max Turbo:

Squid Ink’s CoPilot® Max Turbo printing system is designed to print superior quality hi-resolution characters on porous or non-porous surfaces. For applications that require immediate dry times on non-porous surfaces, the CoPilot Max Turbo also has the capability to run UV LED curable inks. With up to 2.8” of print height per printhead and the ability to run up to 2 printheads from one controller, the CoPilot Max Turbo offers a versatile, yet cost effective solution for your coding and marking applications.

BENEFITS OF THE COPILOT MAX TURBO

• • Run up to two 2.8″ printheads from a single controller
  • Print up to 2.8” of hi-resolution characters, razor-sharp text, scannable bar codes, and great looking logos at 360 dpi
  • CoPilot Max’s 4.3″ full color touchscreen provides access to the system’s internal messages and print functions
  • Compatible with Squid Ink’s easy-to-use Orion™ message creation PC software



SYSTEM SPECIFICATIONS

• • Print Technology – Piezo impulse printhead technology
  • Maximum Print Height – 2.8” (7.1 cm) per printhead
  • Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
  • Horizontal Print Resolution – 150 dpi or 300 dpi
  • Print Speed – Up to 220 ft/min at 150 dpi; Up to 110 ft/min at 300 dpi
  • Time & Date – Internal real time clock with battery back-up
  • Product Sensor – External photocell or optional encoder
  • Communication Interface – One USB host and one Ethernet input
  • Touchscreen – 4.3” (10.9 cm) full color touchscreen display
  • Ink Cartridge Volume – 500ml cartridge
  • Low Ink Indicator – Status alert on touchscreen, LED light beacon optional
  • Substrate Capabilities – Porous or non-porous surfaces
  • Electrical Requirements – 100 – 240 VAC, 50/60 Hz, 216VA maximum
  • Operating Environment – 34°F – 104°F (1° – 40°C)
  • Agency Certifications – CE

Click here to download brochure.

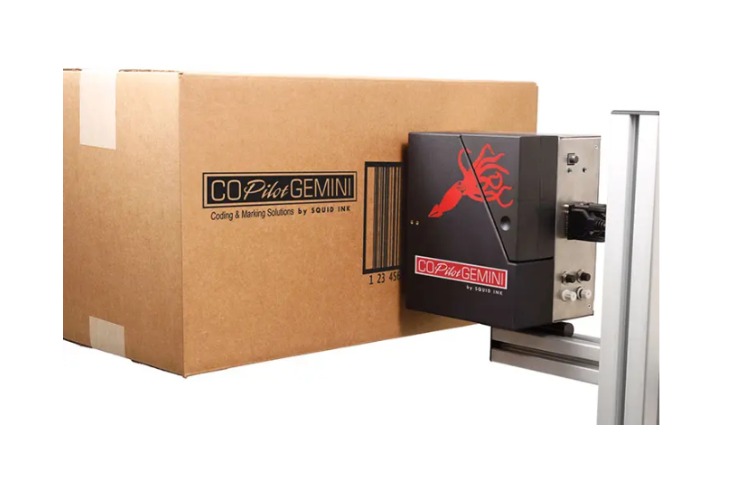

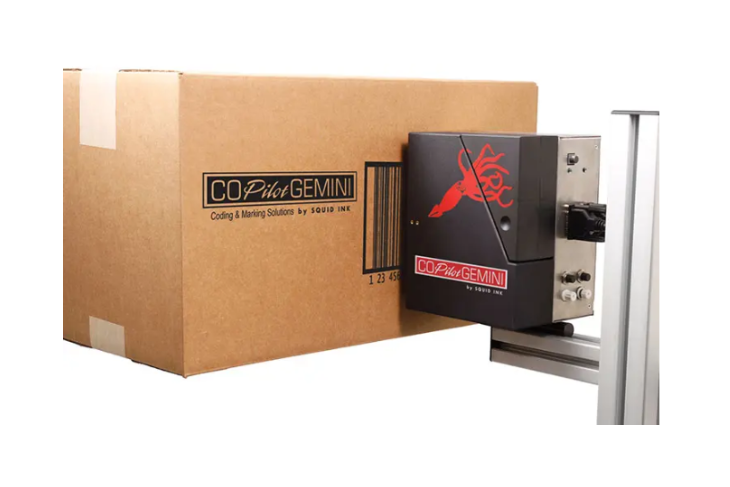

CoPilot® Gemini

Squid Ink’s CoPilot^® Gemini printing system is designed to print superior quality hi-resolution characters on porous or non-porous surfaces. For applications that require immediate dry times on non- porous surfaces, the CoPilot Gemini also has the capability to run UV LED curable inks. With a massive 5.6” of print height and print speeds up to 220 ft/ min, the CoPilot Gemini provides a cost effective solution for making your mark on a wide variety of products and substrates.

BENEFITS OF THE COPILOT® Gemini

• • Print Technology – Piezo impulse printhead technology
  • Maximum Print Height – 5.6” (14.2 cm)
  • Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
  • Horizontal Print Resolution – 150 or 300 dpi

SYSTEM SPECIFICATIONS

• • Print Technology – Piezo impulse printhead technology
  • Maximum Print Height – 5.6” (14.2 cm)
  • Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
  • Horizontal Print Resolution – 150 or 300 dpi
  • Print Speed – Up to 220 ft/min at 150 dpi; up to 110 ft/min at 300 dpi
  • Time & Date – Internal real time clock with battery back-up
  • Product Sensor – External photocell or optional encoder
  • Communication Interface – One USB host and one Ethernet input
  • Touchscreen – 4.3” (10.9 cm) full color touchscreen display
  • Ink Cartridge Volume – 500ml cartridge
  • Low Ink Indicator – Status alert on touchscreen, light beacon optional
  • Substrate Capabilities – Porous or non-porous surfaces
  • Electrical Requirements – 100 – 240 VAC, 50/60 Hz, 216VA maximum
  • Operating Environment – 34–104°F (1–40°C)
  • Agency Certifications – CE

Click here to download brochure.

Need help deciding which of these high-quality large character ink jet printing systems will fit the needs of your facility? Contact us today: send us an email at Sales@dartronics.com or call Dartronics at +1 (800) 298-8936.
